CNC Spring Machine with 380V Power 12kW Motor and 110m/min Wire Feed Speed for Precision Spring Coiling

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Quảng Đông, Trung Quốc
Hàng hiệu:	HYD

Thanh toán:

Số lượng đặt hàng tối thiểu:	1

Tiếp xúc

Chi tiết sản phẩm

Cân nặng:	1800 kg	Điện áp:	380 v
Quyền lực:	12 kW	Kích thước dây:	1,0-3,5 mm
Động cơ servo:	4 trục	Tốc độ dây tối đa:	110 m/phút
Tốc độ cách mạng cam:	0-60 vòng / phút	Đường kính bên ngoài:	Tối đa 60 mm
Dây con lăn thức ăn:	4 cặp	Lỗi tối đa:	± 0,10 ~ ± 359,90
Động cơ cấp dây:	5,5 kW	Cam động cơ:	5,5 kW
Động cơ trục lõi:	1,0kw	Kích thước máy:	L1600W1300H1900 mm
Thương hiệu động cơ:	SANYO
Làm nổi bật:	380V CNC Spring Machine , 12kW Computer Spring Machine , 110m/min Spring Coiling Machine

CNC Spring Making Machine with Sanyo Servo Motor 1.0-3.5mm Spring Winding

Product Overview

High-precision CNC spring making machine designed for metal and metallurgy industries, featuring Sanyo servo motors for superior performance and accuracy in spring production.

Technical Specifications

Model	HYD-35T-4A
Wire Size	1.0-3.5mm
Servo Motors	4 axes
Outside Diameter	Max 60mm
Wire Feed Roller	4 Pairs
Maximum Error	±0.10~±359.90
Wire Feed Speed	110m/min
Cam Revolution Speed	0~60 RPM
Control System	1SET

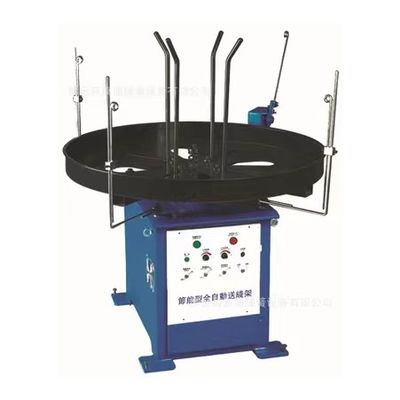

Decoiler	200KG
Wire Feed Motor	5.5KW
Cam Motor	5.5KW
Core Axis Motor	1.0KW
Motor Brand	Sanyo
Power Supply	380V±10%V50Hz
Machine Weight	1800KG
Machine Dimensions	L1600×W1300×H1900MM

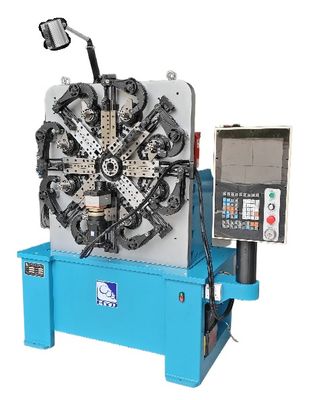

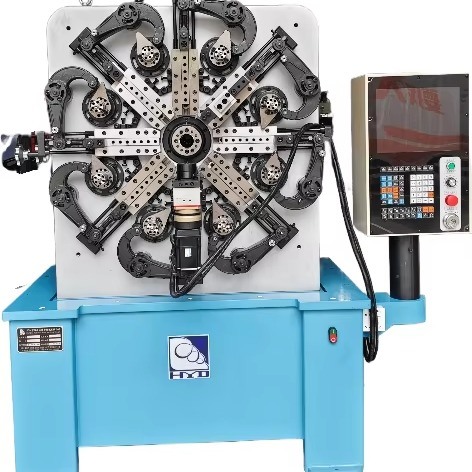

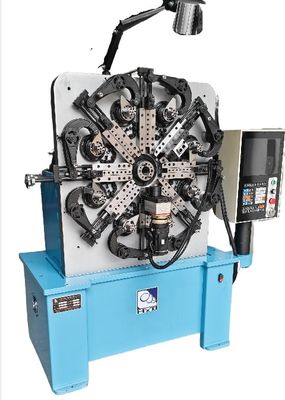

Product Images

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
