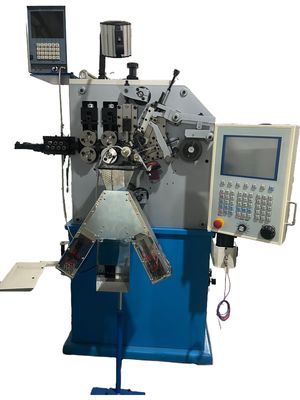

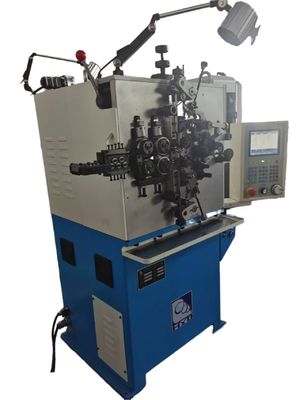

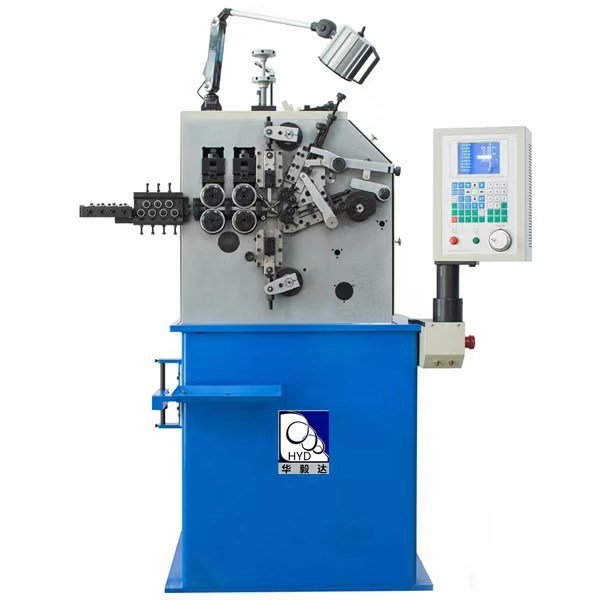

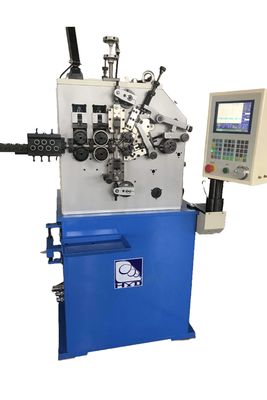

HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Quảng Đông, Trung Quốc
Hàng hiệu:	HYD

Thanh toán:

Số lượng đặt hàng tối thiểu:	1

Tiếp xúc

Chi tiết sản phẩm

Cân nặng:	880kg	Điện áp:	380 v
Quyền lực:	5,8KW	Kích thước dây:	0,4-2,0 triệu
Động cơ servo:	3 trục	Tốc độ dây tối đa:	1000 m/phút
Đường kính tối đa bên ngoài:	45 mm	Động cơ cấp dây:	2,7 kW
Cam động cơ:	2,7 kW	Động cơ sân:	1,0kw
Cung cấp điện:	220V 3P 50/60Hz	Trọng lượng máy:	880kg
Kích thước máy:	9009501600 mm	Năng lực decoiler:	60 kg
Hệ thống điều khiển:	1 bộ
Làm nổi bật:	0.4-2.0mm Wire Size CNC Spring Machine , 3 Axes Servo Motors Compression Spring Machine , 1000m/min Max Wire Speed Spring Coiling Machine

HYD-320 Compression Spring Machine 0.4-2.0mm Spring Coiling Machine

Product Specifications

Model	HYD-320
Wire Size	0.4-2.0mm
Servo Motors	3 axes
Max Wire Feed	Unlimited
Max Outside Diameter	45mm
Wire Feed Speed	1000m/min
Control System	1SET
Decoiler	60KG
Wire Feed Motor	2.7KW
Cam Motor	2.7KW
Pitch Motor	1.0KW
Power Supply	220V3P 50/60HZ
Machine Weight	880KG
Machine Size	9009501600mm

Product Images

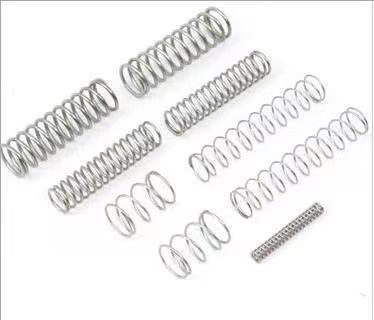

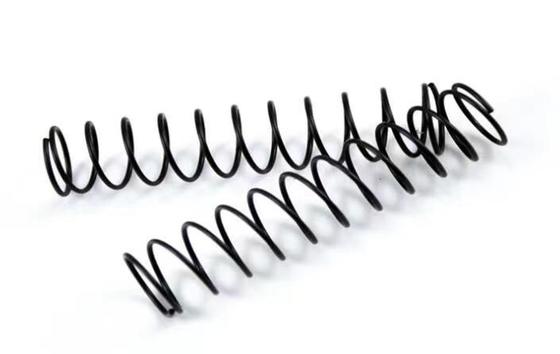

Application Scenarios

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
