| Nguồn gốc: | Quảng Đông, Trung Quốc |
| Hàng hiệu: | HYD |
| Số lượng đặt hàng tối thiểu: | 1 |
|---|
| Cân nặng: | 1800 kg | Điện áp: | 380 V |
|---|---|---|---|
| Quyền lực: | 12 kW | Kích thước dây: | Carbon cao: 1-4MM; Carbon thấp: 2-6mm |
| Động cơ servo: | 10 trục | Tốc độ dây tối đa: | 100m/phút |
| Tốc độ cách mạng cam: | 0-60 vòng / phút | Đường kính bên ngoài: | Tối đa60mm |
| Dây con lăn thức ăn: | 4 cặp | Lỗi tối đa: | ± 0,10 ~ ± 359,90 |
| Động cơ cấp dây: | 5,5kW | Cam động cơ: | 5,5kW |
| Động cơ trục lõi: | 1.0KW | Kích thước máy: | 2500kg |
| Kích thước máy: | L1100*W1400*H2000MM | ||
| Làm nổi bật: | 10 Axes Servo Motors CNC Spring Machine,1.0-4.0MM Wire Size Computer Spring Machine,0-60 RPM Cam Revolution Speed Spring Coiling Machine |
||

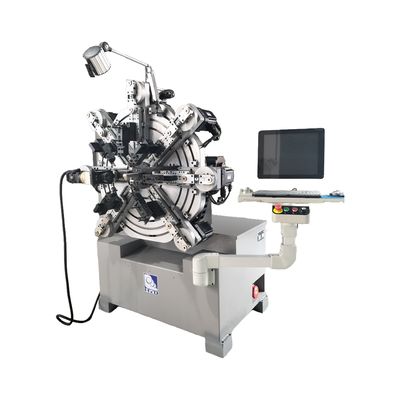

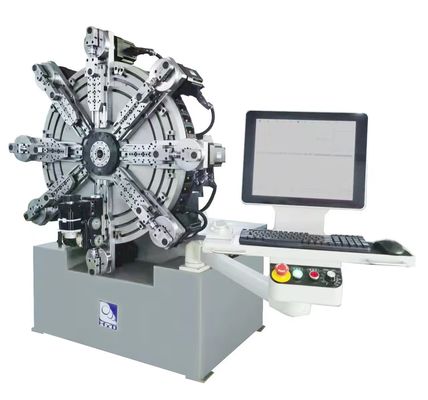

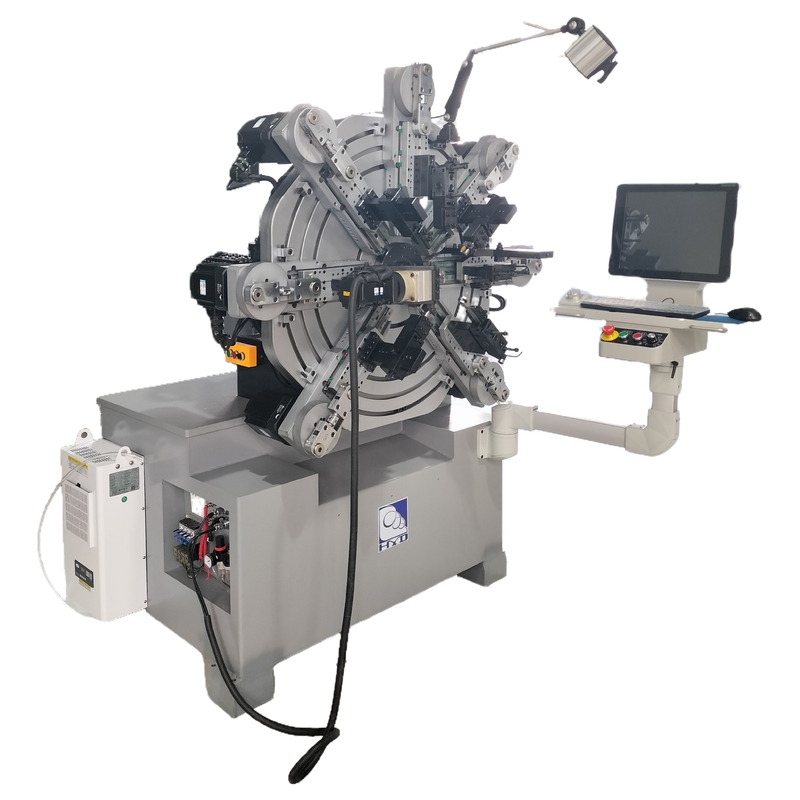

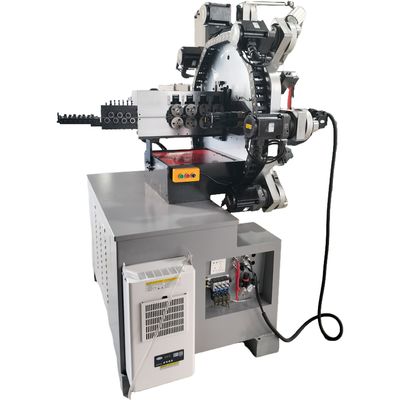

The HYD-40T-10A is a high-performance CNC spring machine designed for precision spring manufacturing with wire sizes ranging from 1.0-4.0mm for high-carbon steel and 2-6mm for low-carbon steel.
| Model | HYD-40T-10A |
|---|---|
| Wire Size | High-Carbon: 1.0-4.0mm; Low-Carbon: 2-6mm |
| Servo Motors | 10 axes |
| Outside Diameter | Max 60mm |
| Wire Feed Roller | 4 Pairs |
| Maximum Error | ±0.10~±359.90 |
| Wire Feed Speed | 100m/min |
| Cam Revolution Speed | 0~60 RPM |
| Control System | 1SET |
| Decoiler | 300KG |
| Wire Feed Motor | 5.5KW |
| Cam Motor | 5.5KW |
| Core Axis Motor | 1.0KW |
| Motor Brand | Sanyo |
| Power Supply | 380V±10%V50Hz |
| Machine Weight | 2500KG |
| Machine Dimensions | L1100×W1400×H2000MM |
A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.
A2: We can produce any of your requested designs.
A3: Yes, We can customize the machine according to your product requirements.
A4: Sure. We are factory direct sales; welcome to visit our factory.
A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.
A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customize as per requirement.
A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.
A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.
A9: The guarantee period is one year from the date of B/L.
A10: One set. We will make the machine suitable for you according to your needs.
